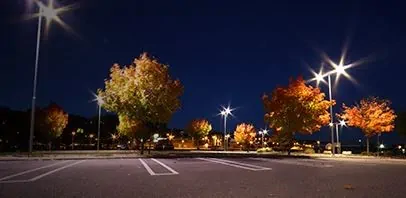

Parking lot lighting design

Make the entire site part of the plan: parking stalls, driving lanes, pedestrian routes, entrances, and the neighboring properties.

Illustrative parking site scope diagram. Not a calculated lighting plan.
A scope sketch helps identify what to survey. This illustration is not to scale and does not recommend pole positions or show calculated light levels.

Design for people moving through the site

Parking-lot lighting involves more than illuminating the center of the pavement. Entrances, walkways, islands, and transitions between areas deserve attention. Look at where drivers and pedestrians meet and where a building or landscape feature interrupts coverage.

A site plan should show the usable area and the proposed pole locations. Existing pole positions may constrain a retrofit; new construction may offer more flexibility. Document those constraints before comparing fixture counts.

Control where the light goes

Distribution pattern and fixture orientation help determine which parts of the site receive light. Higher output alone does not solve poor placement. Compare the effect of optics and aiming on the parking area, the property boundary, and nearby windows.

Glare and light spilling beyond the intended area are separate concerns from average illumination. Review them during the design discussion. Local requirements vary, so provide any applicable project criteria before the calculation is prepared.

Make the retrofit practical

Record pole height, arm style, mounting details, and the existing electrical supply. Confirm physical compatibility and have the condition of existing poles and electrical equipment assessed by the appropriate project professionals.

Discuss operating hours and control options such as photocells, scheduling, or dimming. The lighting design and the operating strategy should support each other. LightExpert can help compare fixture and layout options for your site.

Compare interior and perimeter positions

A center-of-lot pole and a property-edge pole have different jobs. Compare optical distributions, orientation and shielding at each position. Show building entrances, planted islands and pedestrian crossings explicitly rather than averaging them into the whole lot.

Read a parking study area by area

Ask for the calculation boundary, grid spacing, mounting heights and exact fixture/optic schedule. Review average, minimum and uniformity definitions for each area. A good lot-wide average can conceal an entrance or walkway that needs a different treatment.

Build a useful scope for pricing

Separate fixture supply, mounting adapters, pole work, trenching, electrical work, controls and commissioning. Existing pole reuse must be verified separately. With these items defined, competing proposals are easier to compare on the same scope.

What a useful design package should explain

DeliverableWhat to check
Fixture scheduleExact model, optic, output setting, mounting height and aiming.
Calculation areasBoundary, grid, plane height and initial or maintained assumptions.
ResultsAverage, minimum, maximum and clearly defined uniformity ratios.
Site coordinationProperty boundaries, obstructions, controls and separate construction scope.

Common questions

Can new LEDs use the existing poles?

Possibly, but the pole condition, mounting compatibility, and structural requirements need review. A lighting calculation alone does not establish that a pole is suitable.

Is the brightest fixture the best option?

Not necessarily. Distribution, uniformity, glare, and boundary conditions are also important parts of the comparison.

Project Preparation

Your Parking Lot Site Survey

Start with a reliable record of the site. Use these steps to prepare a useful design request and keep missing information visible through review.

Divide the Site Into Actual Tasks

Mark parking stalls, vehicle lanes, pedestrian crossings, accessible routes, building entrances and loading areas. Identify which areas belong in the lighting scope and which require coordination with another designer. Describe the people and vehicles using each zone during the hours of operation.

Survey Poles and Mounting Interfaces

Give every pole or wall position a stable ID. Record mounting height, local grade, bracket or tenon details, fixture orientation and electrical information from approved records. Photograph the interface and surrounding obstructions. Pole length alone does not describe the installed mounting height.

Model a Working Lot

Show mature trees, building projections, signs and typical parked vehicles that can affect the study. Note vehicle heights and delivery activity where relevant. Ask which obstructions the model includes and which conditions need a separate review instead of treating an empty pavement plan as the only operating condition.

Review the Boundary and After-Hours Mode

Identify neighboring windows, roads and property edges on the plan. Supply applicable project requirements and operating restrictions. Ask for the agreed boundary evaluation and for separate results where dimming or partial shutoff changes the layout. Confirm how entrances and pedestrian routes are handled after business hours.

Compare Alternatives on the Same Basis

Use the same surveyed geometry, calculation areas and project criteria when comparing fixture options. Record the exact optic, mounting and orientation for each alternative. Review minimums, distribution and the agreed glare or boundary checks alongside average values; note exclusions and unresolved assumptions in the decision record.

The worksheet is an editable text file. It is a preparation aid, not a calculated lighting plan or approval of pole, foundation or electrical suitability. Nothing is submitted when you download it.
